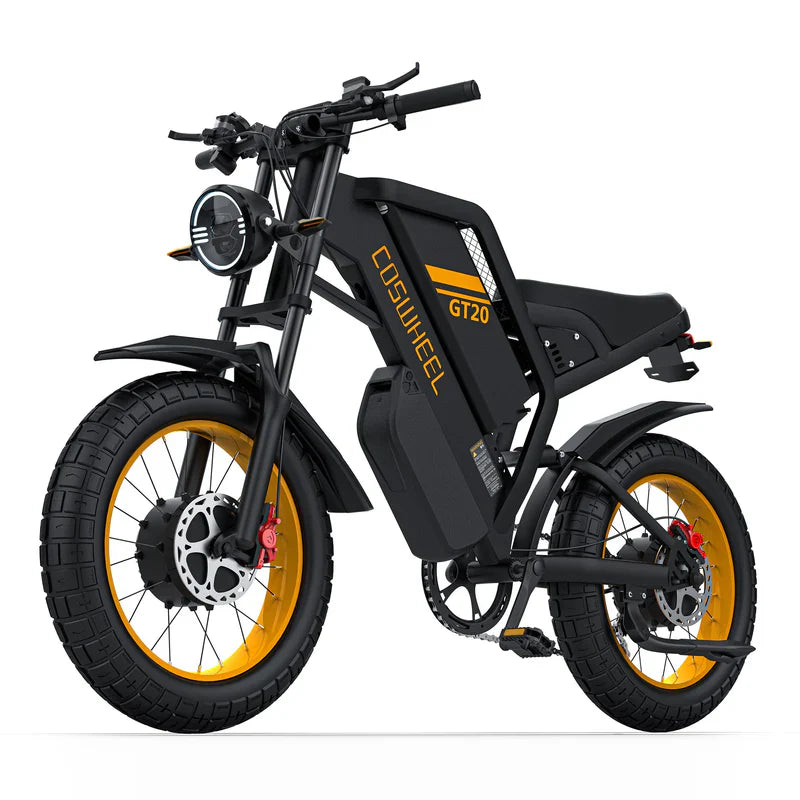

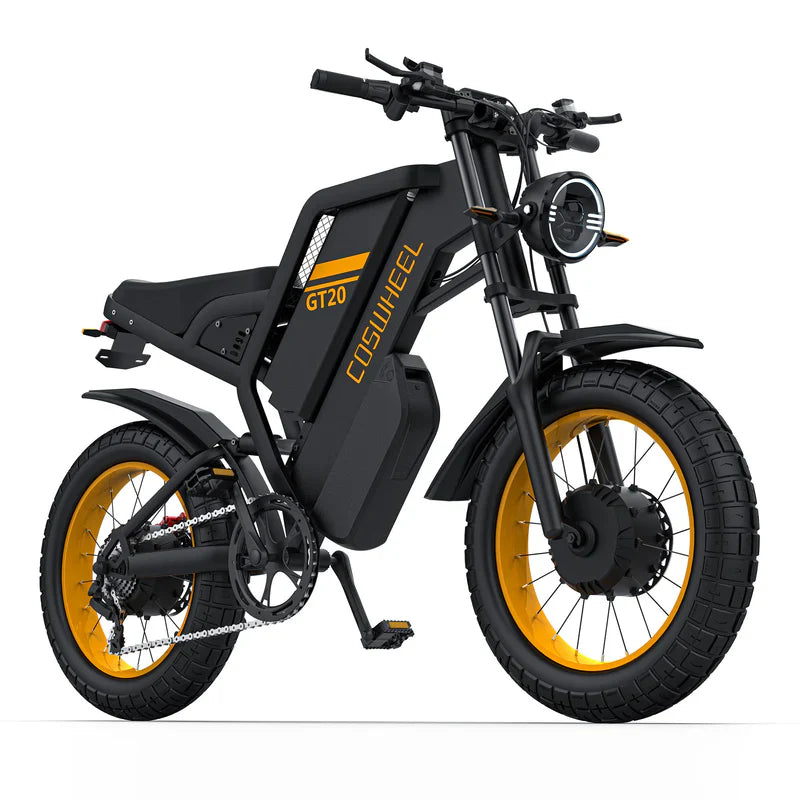

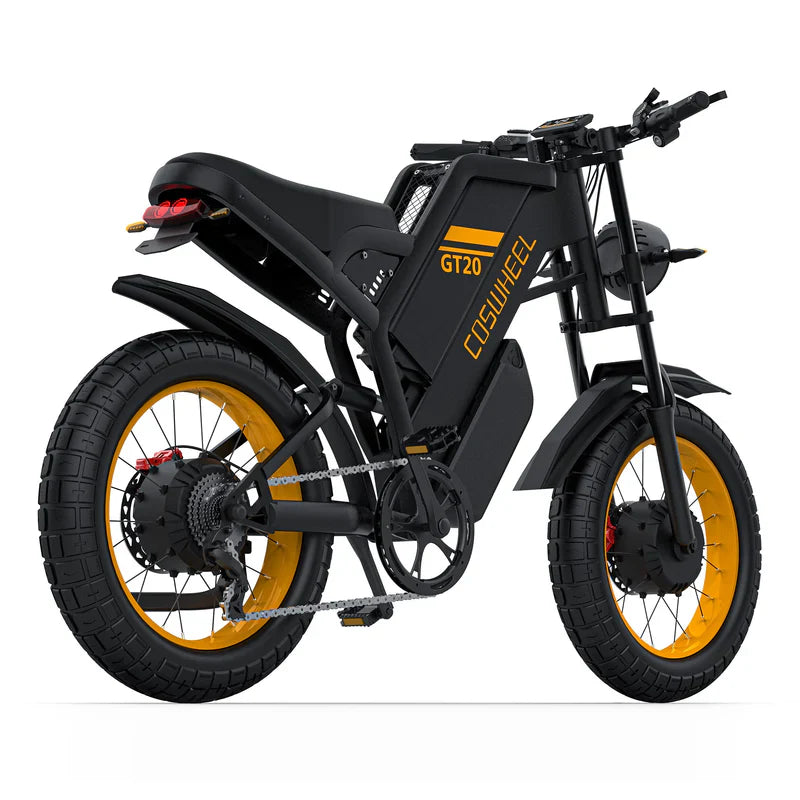

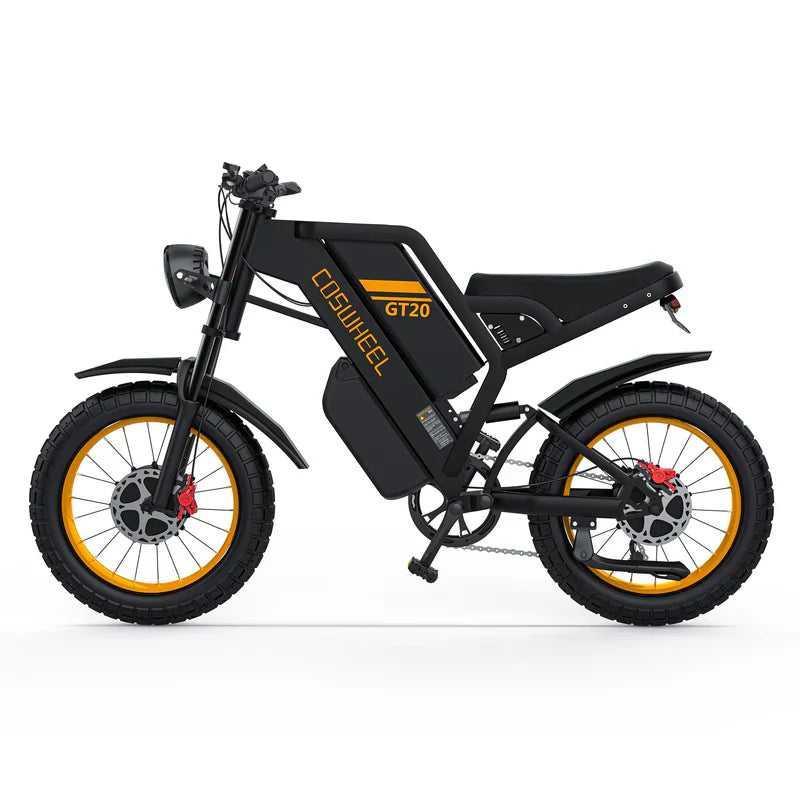

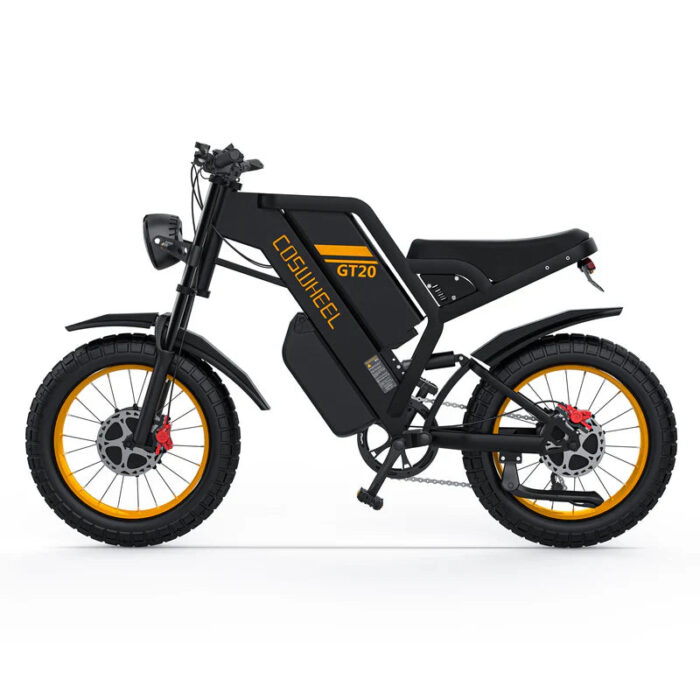

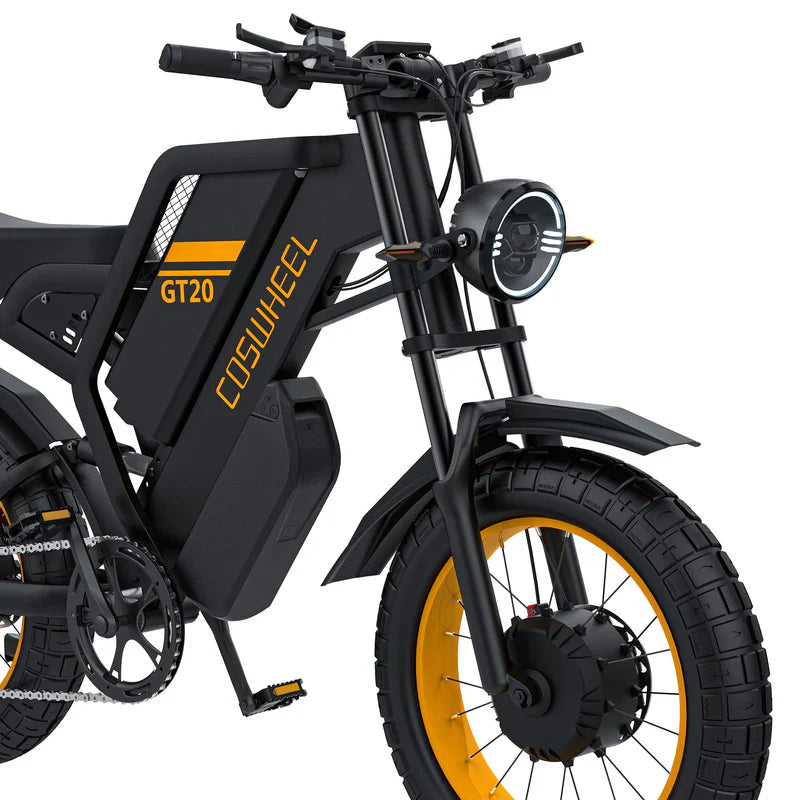

Coswheel GT20 PRO Electric Bike (Dual Motor and Dual Battery)

Description

HIGHLIGHTS

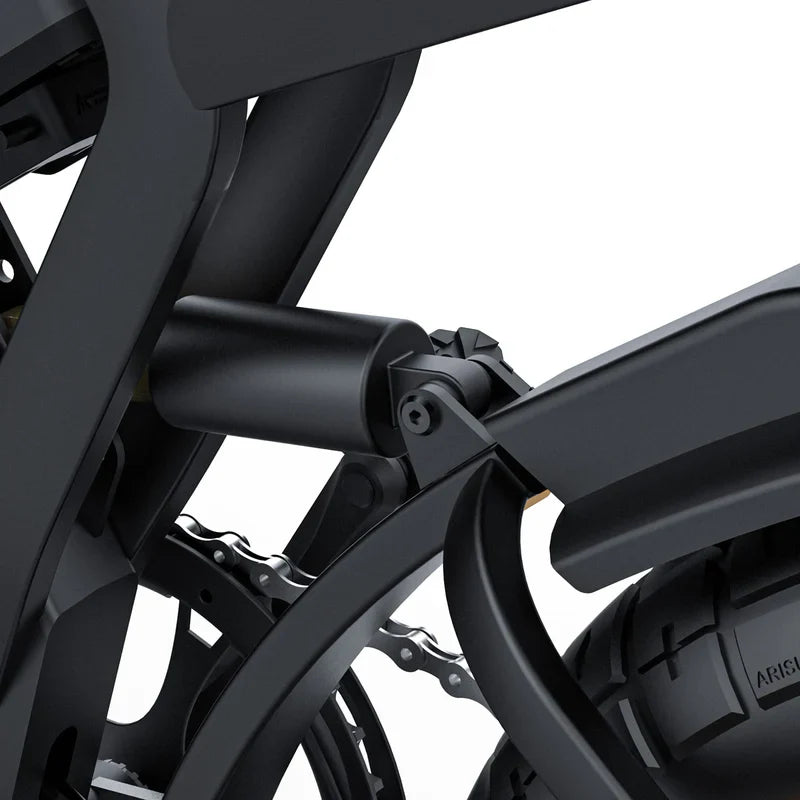

3 Levels Height Adjustment

The rear suspension has 3 holes for 3 levels of height adjustment, allowing you to adjust to a comfortable riding height.

Front and Rear Suspension

80mm front suspension travel, 180mm rear suspension travel, 850 lbs.

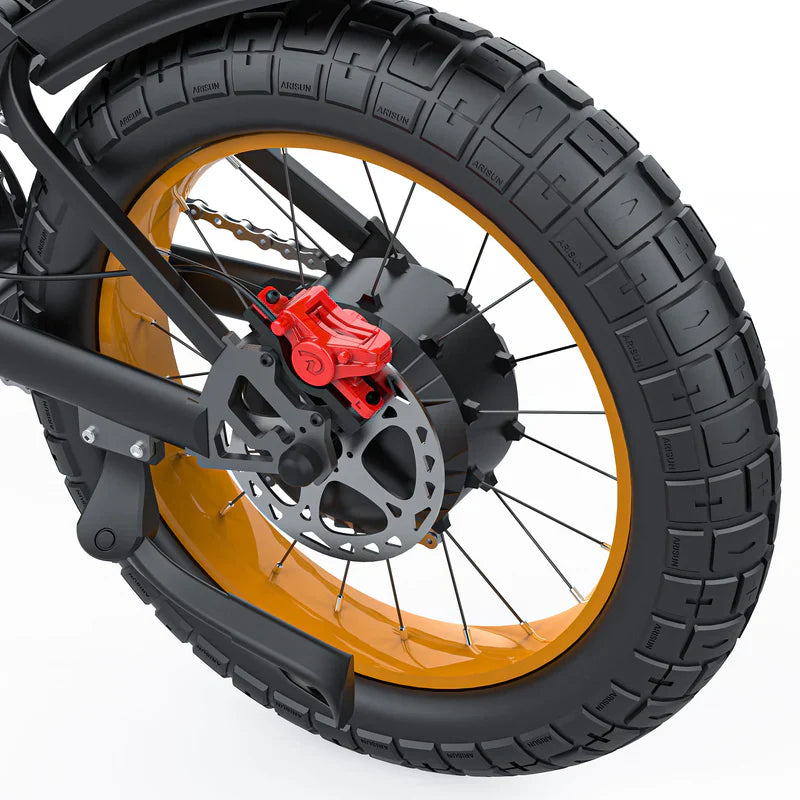

Double Piston Hydraulic Oil Brake

Front and rear double-piston hydraulic oil brakes, equipped with 180MM brake discs, make riding safer.

Waterproof Chain

Brand new waterproof and rust-proof chain, silver-white.

Double Cover Chain

The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.

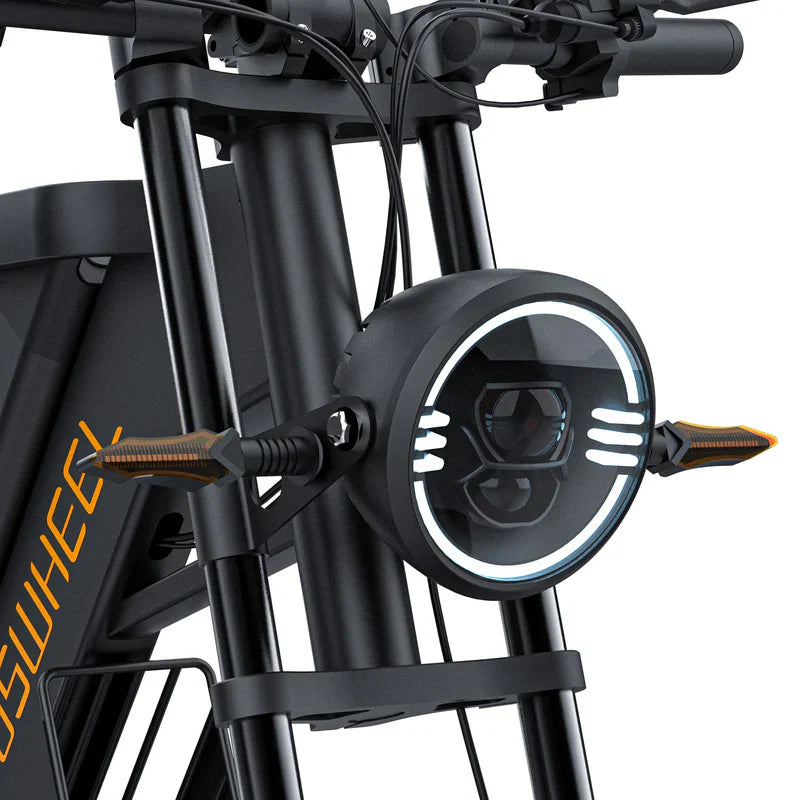

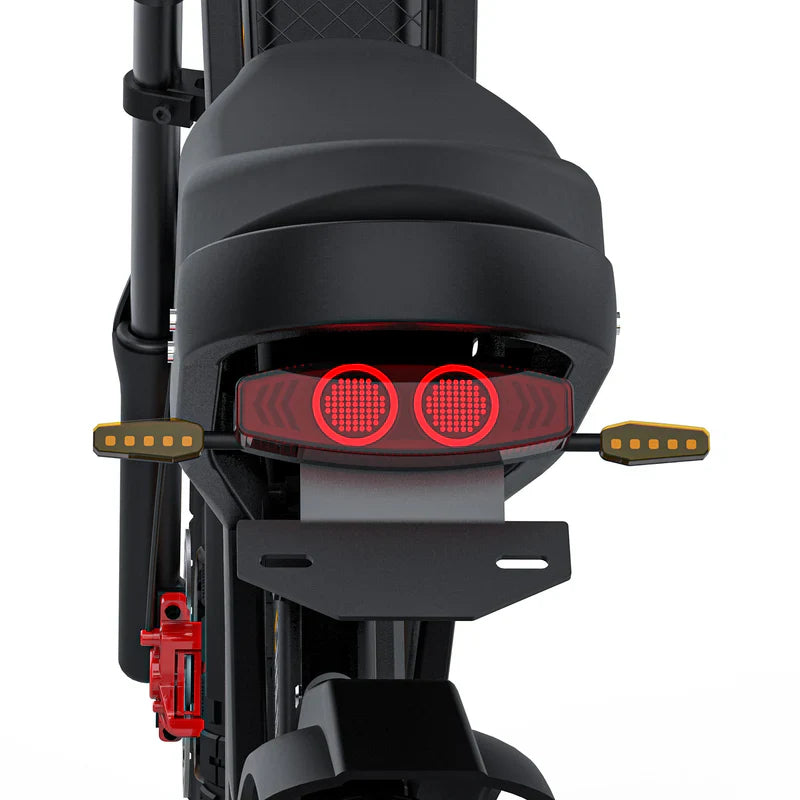

Powerful Lighting

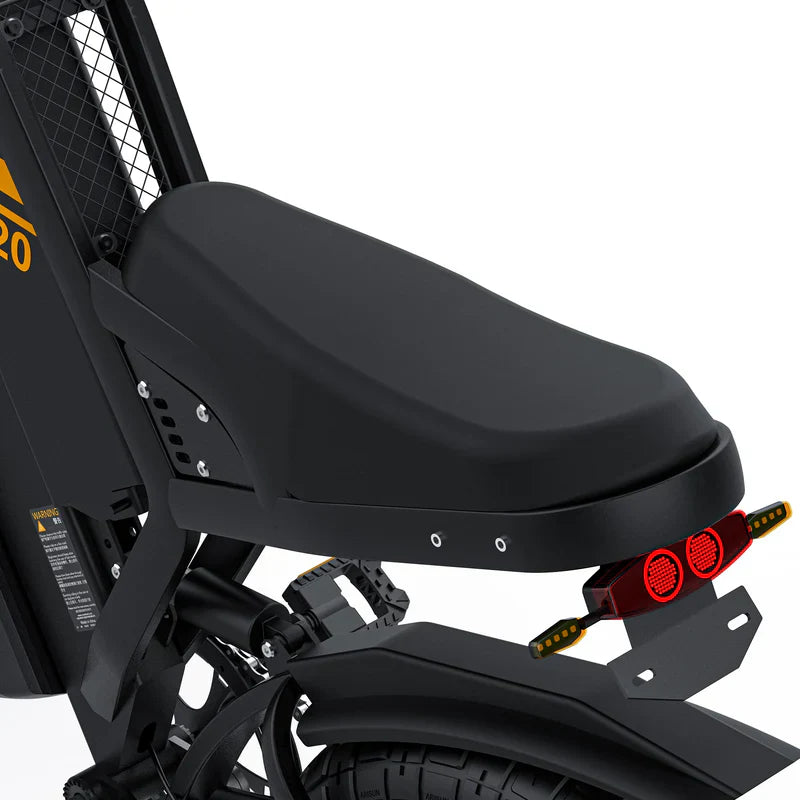

Flowing headlights, LED taillights, and flowing turn signals illuminate your way forward.

Aluminum Alloy Frame

The all-aluminum frame has undergone 10,000 collision tests and is sturdy and reliable.

PERFORMANCE

• Top Speed: Class 2/3, 31 Mph (50Km/h)
• Range: 80+miles (128km) in Class-2 throttle-only mode (pure electricity); 145miles (233km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 3000W( Peak 1500W+1500W) (Rated 1000W+1000W) Brushless Rear Hub Motor 160N.m

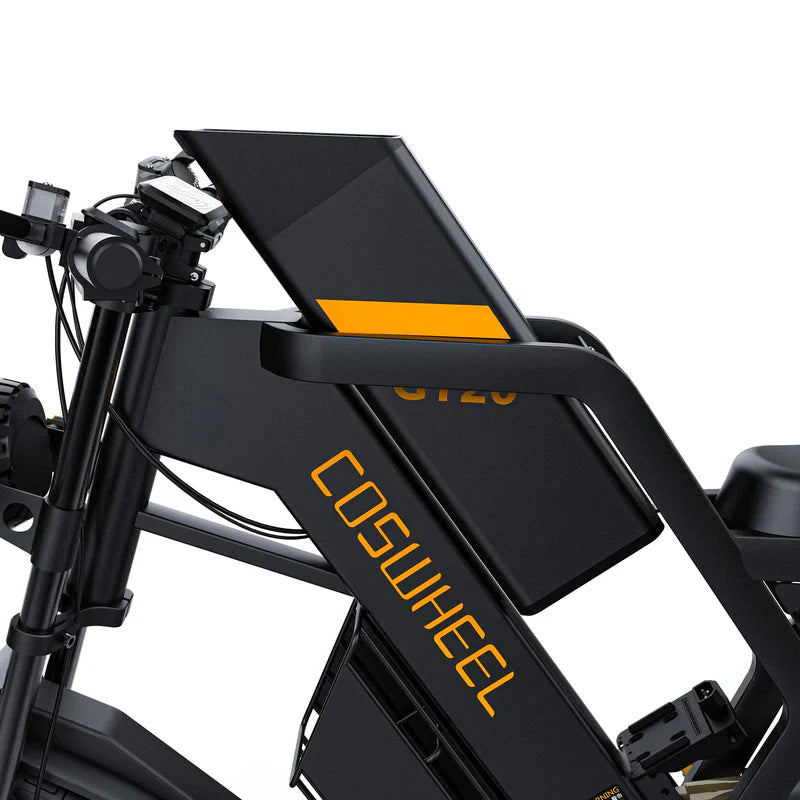

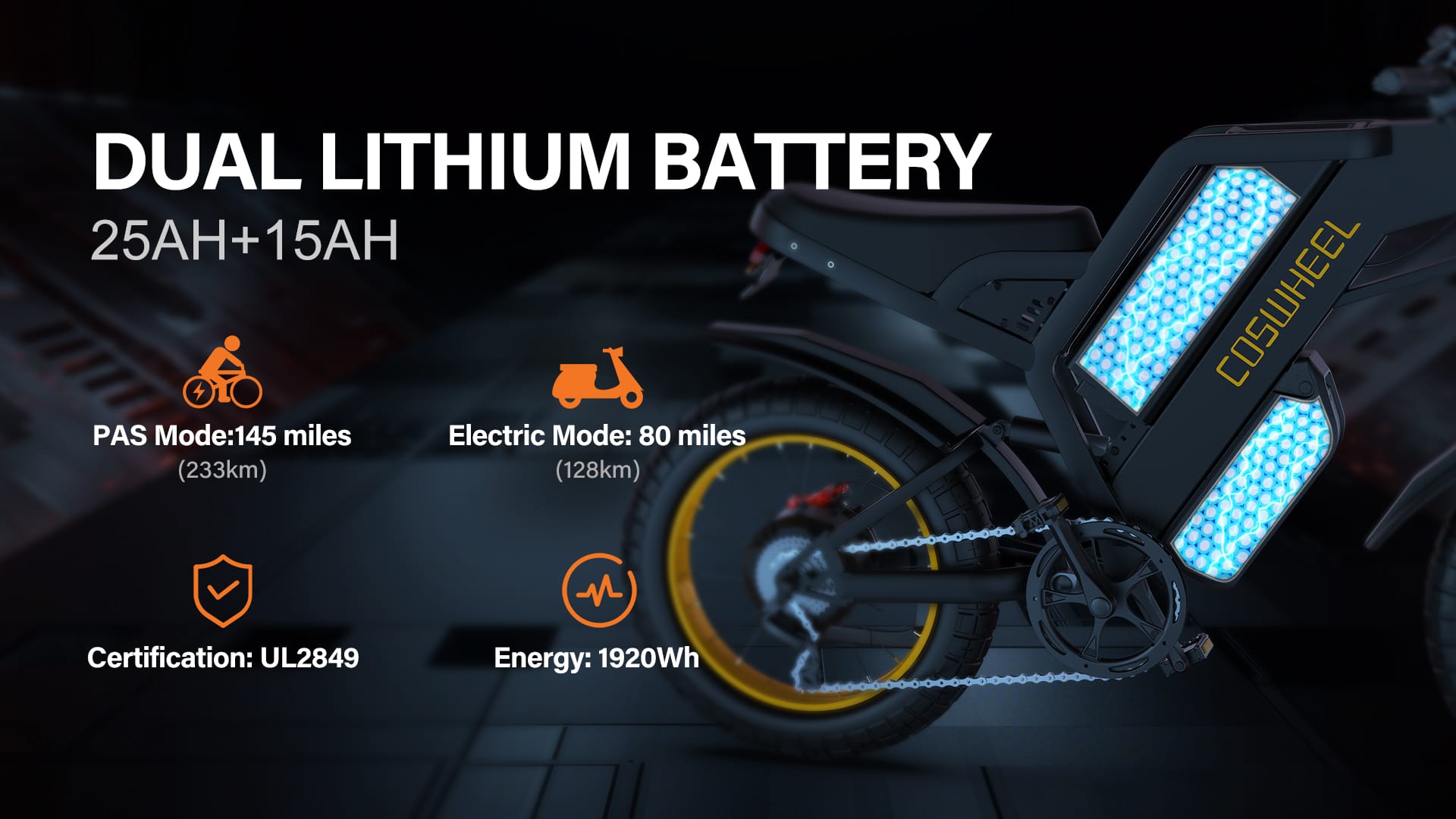

• Battery: 48V 25Ah+15Ah Battery (Lithium 18650 Cells)
• Energy: 1920Wh
• Front Suspension: 20″ Shoulder Shock Absorbing, 80mm Travel
• Rear Suspension: 850 Pounds, 180mm Travel
• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: ARISUN Off Road Tire 20″ × 4.0″ A820 60TPI with Meimeng Tire+PVC Line

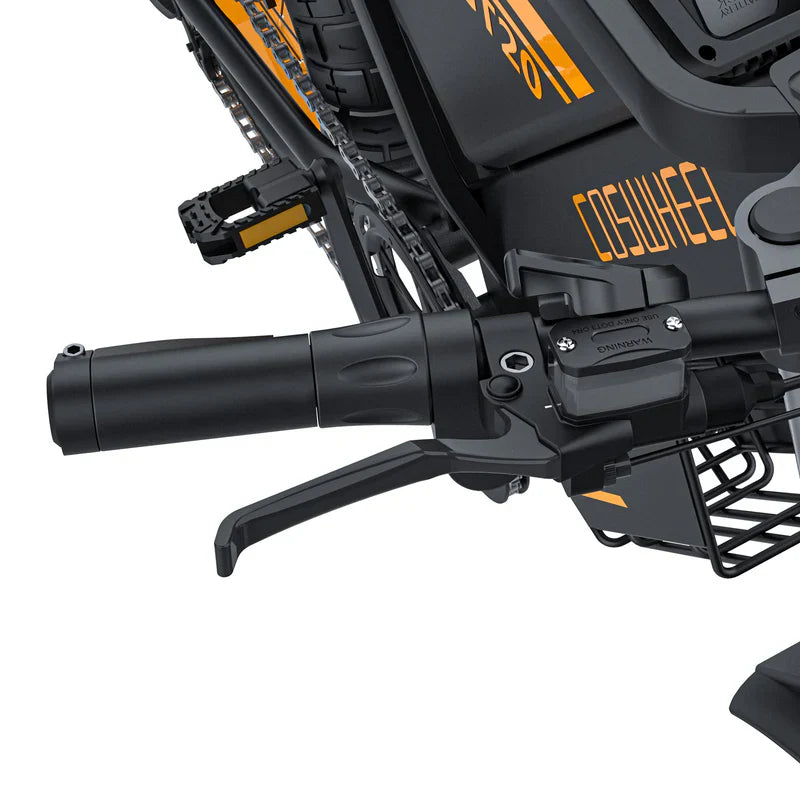

• Throttle: Thumb Throttle

ELECTRONICS

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours

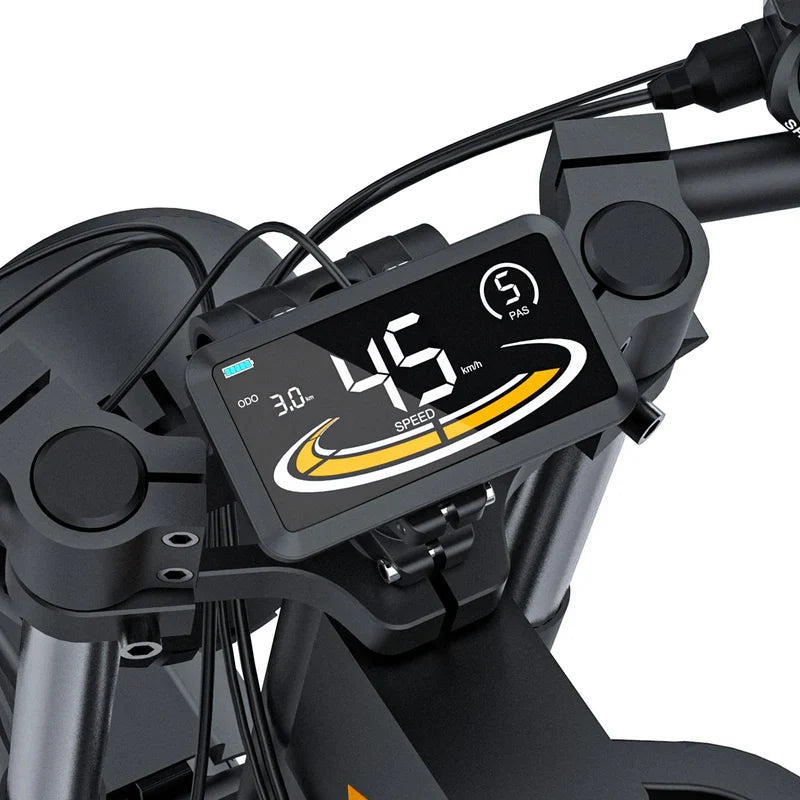

• Display: Easy Read LCD Display
• Controller: 48V 38A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

COMPONENTS:

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 “*3/32″*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2″ * 3/32″
• Handlebars: Split Handlebar, φ32 φ22 Sand Black

GEOMETRY:

• Suitable Height: 5’1″ – 6’5″
• Seat Height: 32.6″ (83cm)
• Bike Height: 41.7″ (106cm)
• Wheelbase: 47.8″ (121.5cm)
• Handlebar Width: 27.2″ (69cm)
• Bike Weight: ≥99lbs (with Battery) (≥45kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9″ * 27.2″ *41.7″ (180*69*106cm)
• Package Size: 59.4″ * 13.8″ * 36.2″ (151*35*92cm)
